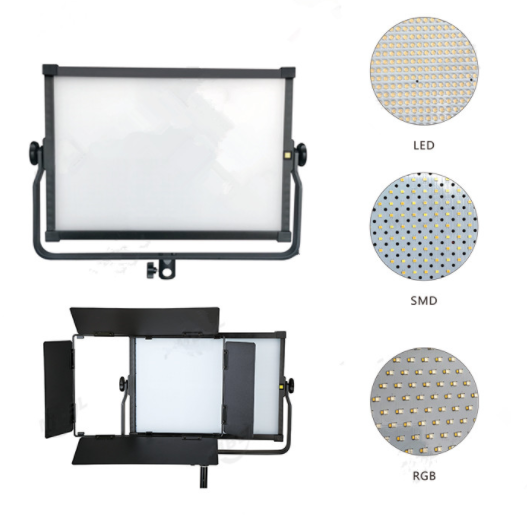

SMD series Lighting is designed with all-aluminum frame and has a good cooling system. Combining the advantage and features of LED, it is a compact, soft and efficient flat panel light.

Model No.	CN-SMD60W	CN-SMD90W	CN-SMD120W	CN-SMD150W
Power	60W	90W	120W	150W
0.5W SMD LED	576PCS	864PCS	1152PCS	1440PCS
Luminous Flux	7200LM	10800LM	14400LM	18000LM
Brightness	2300Lux/1M	3700Lux/1M	4800Lux/1M	5700Lux/1M
CCT	Bi-Color 2800K~6500K
CRI	Ra≥96
TLCI	Qa≥96
Beam Angle	Approx1200
Power Adapter	DC15-18V,>5A	DC15-18V,>7.5A	DC15-18V,>10A	DC28-32V,>7A
AC Direct Supply	AC100-240V
Battery	V-mount lithium battery
Control Mode	Host control + Mobile APP + DMX
Dimmer	0-100%
Dimensions	35.5×39×8CM	49×39×8CM	62×39×8CM	75×39×8CM
Host Weight	2.9KG	3.7KG	4.7KG	5.6KG
